Description

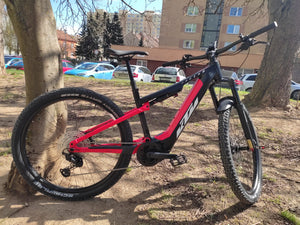

ktm e-fully macina chacana 29.12 KTM MACINA Chacana PRO 750 (2023/24) – svet-elektrokolAnywhere. Anytime. The already popular motto is taken to the next level with the 29 inch MACINA CHACANA ebike. It is also the recommended everyday cure for wanderlust. Compared to the trail enduro oriented KAPOHO and PROWLER models, the CHACANA is still a comfortable touring bike. Thanks to the STRAIGHT LINE LINK (SLL) concept, the 130 mm and 125 mm travel runs smoothly and thus does not get lost on smooth trails. The CHACANA LFC SUV bike with light,
Anywhere. Anytime. The already popular motto is taken to the next level with the 29-inch MACINA CHACANA ebike. It is also the recommended everyday cure for wanderlust. Compared to the trail / enduro-oriented KAPOHO and PROWLER models, the CHACANA is still a comfortable touring bike. Thanks to the STRAIGHT-LINE-LINK (SLL) concept, the 130 mm and 125 mm travel runs smoothly and thus does not get lost on smooth trails. The CHACANA LFC SUV bike with light, mudguards and rack has also firmly established itself. With the separate BOSCH SMART SYSTEM, you are ready for the digital future. The BOSCH PERFORMANCE LINE CX motor and the most powerful BOSCH POWERTUBE 750 WH batteries provide massive support. In addition, the EBIKE FLOW app opens the door to the connected world and connects you to your bike. Thanks to the masterful work of our engineers, the proven KTM frame geometry has been retained despite the increase in size and battery capacity. Removing and re-installing the battery is easier than ever. POWER TUBE TOP LOADER (PTTL) is the name of KTM's own innovation for this user-friendly battery handling. All models are ready for the LFC (LIGHT-FENDER-CARRIER) upgrade.
The CHACANA PRO LTD model is a limited design edition, its specifications will most closely match the KTM Macina Chacana 792 model - it uses the same frame and electronics, but may differ in some of the components used. Therefore, the cover image and specification table are for guidance only.
Bosch Performance Line CX SmartSystem
- New electric drive system from Bosch
- Option of a premium 750 Wh battery
- Expanded communication options with smart devices.
- Possible additional installation of an integrated tracking device
- Detailed information about the engine and SmartSystem news
Technical specifications of the electric bike:
Skeleton
Frame: Macina Chacana 29" Alloy6061 SLL-E 125mm UDH; PT750 Bosch Gen.4 / M-2286
Fork: SR Suntour Zeron 29" 130mm 15x110 taper
Shock: RockShox Deluxe Select+ Debon Air 230x57.5
Drive
Engine: Bosch PERFORMANCE CX SMART SYSTEM - 25km/h / 85Nm
Display: Bosch LED remote SMART SYSTEM + Bosch KIOX 300 TFT Display SMART SYSTEM
Battery: Bosch PowerTUBE 750Wh SMART SYSTEM horizontal
Charger: Bosch STANDARD Charger 4A SMART SYSTEM
Cast
Shifter: Shimano Deore XT M8100-12 SGS shadow+
Shift lever: Shimano Deore M6100-12
Cranks: KTM E-COMP ISIS 170mm Q16
Chainring: FSA Megatooth steel 36T 12speed with chainguard
Cassette: Shimano Deore M6100-12 / 10-51
Chain: Shimano M6100-12
Brakes: Tektro Orion 4F - 4 pistons
Discs: Tektro TR-45 203/180mm
Wheels
Wheel size: 29"
Front wheel: KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 622x30TC / DT Champion 2.0 black
rear wheel: KTM Line - Shimano MT410B CL 32H 148-12TA / Ambrosio E30 Trail 32H 622x30TC / DT Alpine II 2.34 black
Tires: Schwalbe Johnny Watts Perf. DD RaceGuard Folding 65-622, 29x2.6
Cockpit and seating:
Grips: Ergon GA20
Handlebars: KTM COMP II Trail35 rizer15 760mm
Stem: KTM TEAM II Trail35
Headset: Acros AICR internal 1.1/8"-1.5" angle limit
Saddle: Selle San Marco RND Manganese Rails
Seat post: KTM COMP II dropper internal
Pedals: MTB-Pedal flat VPE-527 alloy
Weight: 27.60 kg
Load capacity: 147 kg
Wheel geometry and size selection:
| Size | M (43 cm) | L (48cm) | XL (53cm) |
|---|---|---|---|
| A Size | 43 | 48 | 53 |
| B Seat tube length | 430 | 450 | 480 |
| C Top tube length | 585 | 610 | 635 |
| D Seat angle | 74.5° (72.6°) | 74.5° (72.6°) | 74.5° (72.6°) |
| E Head angle | 67° | 67° | 67° |
| F Headtube length | 110 | 120 | 130 |
| G Chainstay length | 476 | 476 | 476 |
| H Wheelbase | 1190 | 1216 | 1243 |
| I Stack | 621 | 630 | 640 |
| J Reach | 410 | 435 | 460 |
| K Standover height | 801 | 803 | 807 |
| L BB drop | 38 | 38 | 38 |
| Character height | 167-177 cm | 171 - 187 cm | 181 - 197 cm |
